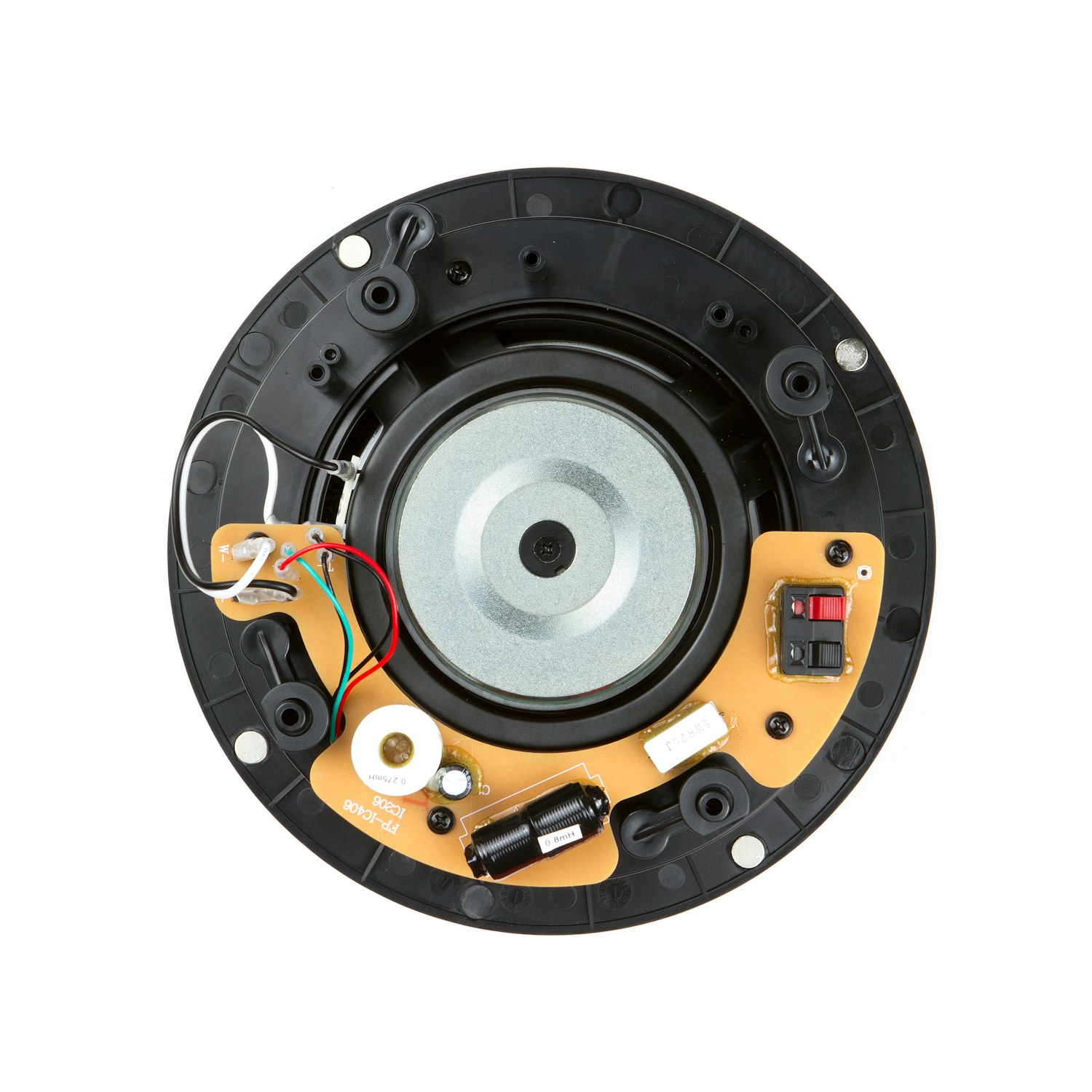

IC 206 LCR FG Installation Speaker

The IC 206 LCR FG features a 6.5" Injected Molded Graphite woofer for exceptional low frequency response with incredibly low distortion. A 1" Polymer Soft Dome tweeter and 1.5" Polymer Soft Dome midrange reproduce mid and high frequencies with precision, detail, and clarity without harshness at high volumes.



Drawing from the award-winning industrial design of the Jamo Custom 400 Series, the IC 208 LCR FG espouses high performance audio with high design, while the flat magnetic paintable grille allows it to disappear completely into its environment. It's a powerful speaker, recommended for larger living areas or rooms where you really want to turn up the volume.



The IC 206 LCR FG in-ceiling loudspeaker is packed with high-performance features:

  • DTT (Decoupled Tweeter Technology) to eliminate unwanted vibration that colors sound
  • HCC (Hard Conical Cone) technology for clear, detailed sound with virtually no distortion
  • Pivot tweeter for user-customizable directivity and limitless placement options
  • Tweeter bridge for complete ease of install and maximum baffle rigidity
  • A paintable magnetic grille that attaches quickly and blends invisibly in any room.

By utilizing modern design and core technologies, Jamo has once again revolutionized the custom-installation speaker market with audiophile-grade performance at unparalleled price points.


Woofer (mm/in)165 / 6.5 IMG
Hole dimensions (mm/in, HxWxD)198mm / 7.8in
Product dimensions (mm/in, HxWxD)201 x 201 x 124 / 7.9 x 7.9 x 4.9
Tweeter (mm/in)25 / 1 Polymer Soft Dome Pivot Tweeterwith DTT Technology
System Type3-way In-Ceiling LCR
Midrange (mm/in)38 / 1.5 Polymer Soft Dome Pivot Midrange
Power Handling (Watts Long/Short Term)55 / 110
Frequency Response (Hz, +/-3dB)68 - 21,000
Impedance8 ohm
GrilleFlat Magnetic Paintable

Spec Sheet

For more technical detail, download the Spec Sheet here: IC206 LCRFG CUT SH .

Product Manual

Download the Product Manual for IC 206 LCR FG Installation Speaker here: IC206 LCRFG OM .
